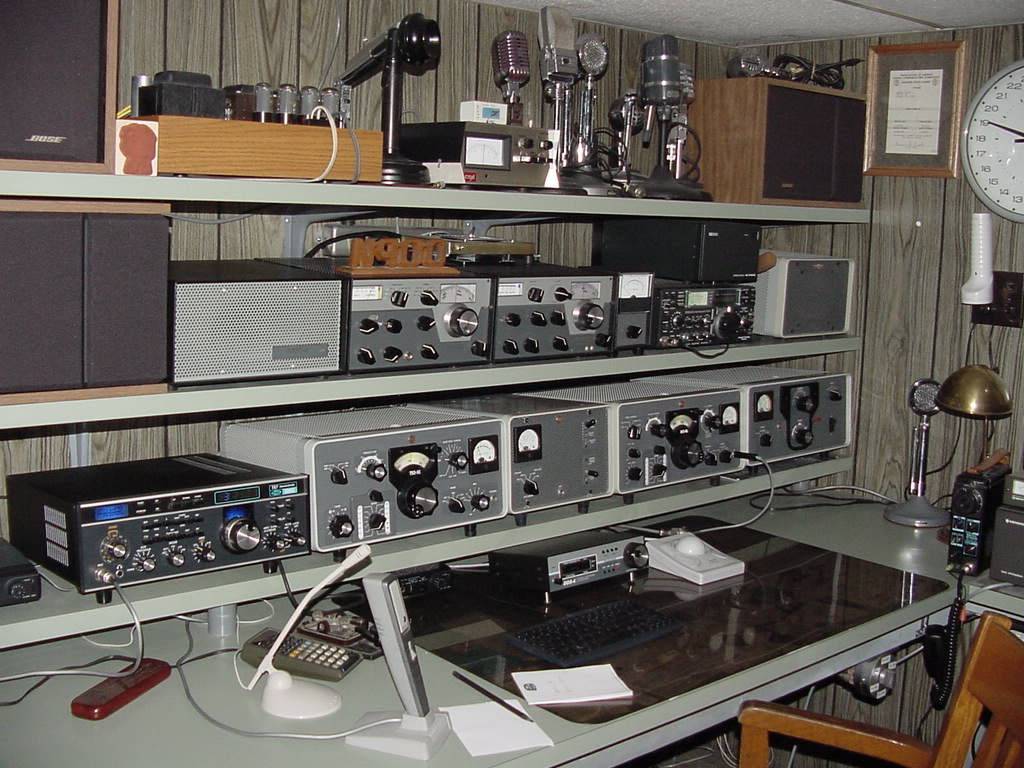

Lower
Shelf (Left to Right):
| - Drake TR7 Transceiver with
DF4NW multicolor frequency display and blue LED
bar back lighting. |
 |
| - Collins 75S3C
RE Receiver |
|
- Collins 312-B4
RE Station Control
|
|
| - Collins 32S3A
RE Transmitter |
|
| - Collins 30L-1
RE Amplifier |
|
Middle
Shelf (Left to Right)
| - Drake MS-4
Speaker (Transmitter Power Supply) |
|
| - Drake R-4C
Receiver (With all Filters and special AM
Passband Tuning Modification) |
|
| - Drake T-4XC
Transmitter |
|
| - Drake W-4
Wattmeter |
|
| - Icom IC-745
Transceiver w/PS15 Power Supply on top |
|
| - Collins 516F-2
Power Supply |
|

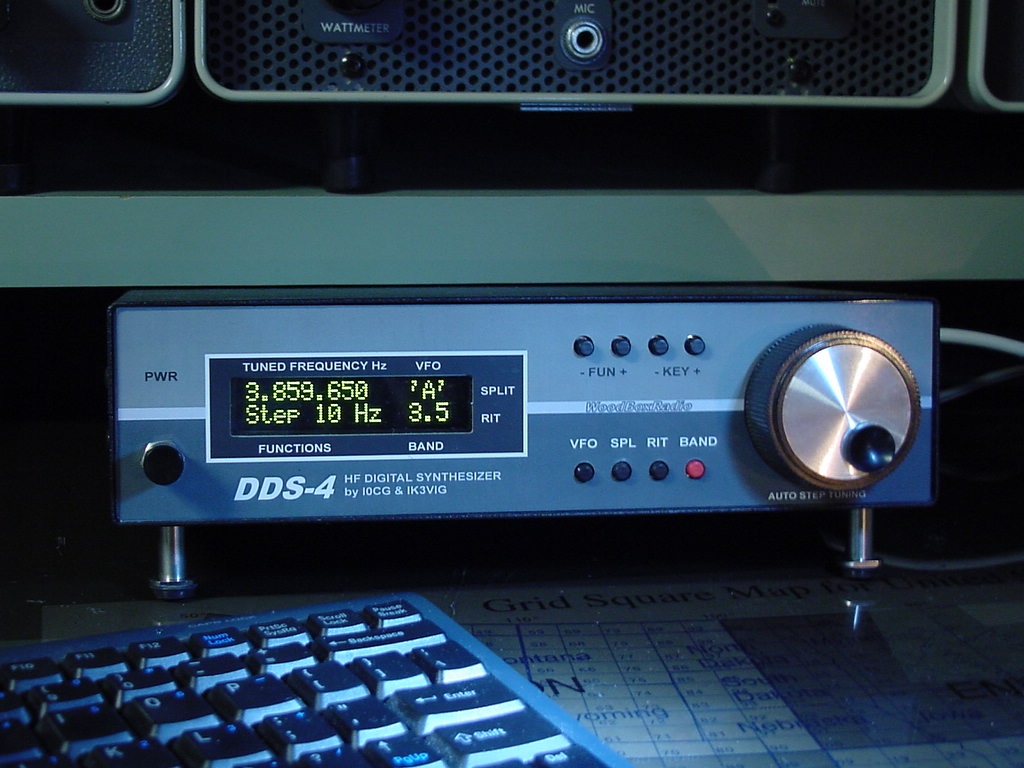

| - WoodBoxRadio
DDS-4 Direct Digital Synthesizer
sits on the table top just below the Collins
312-B4 Station Control. The
DDS-4 can be used in place of the PTO tuning in
the Drake C-Line offering 1Hz frequency accuracy
and high stability, RIT, Memories and A/B VFO
selection. All DDS-4 functions and
operations can also be controlled via computer
using programs like Ham Radio Deluxe
(HRD). I do have a station computer that
sits below the operating table. The 19"
color LCD monitor was swung out of the way for
the station picture. |
 |
Top
Shelf (Left to Right):
| - Stromberg
Carlson Tube Stereo Ampifier (P-P
7355’s) – Amplifier is connected to the radio
room computer and
drives the Bose 201 Series III speakers you
see. |
|
| - CDE Ham II
Control Box |
|
| - Some of my microphone
collection that get swapped
periodically between rigs. |
|
|
